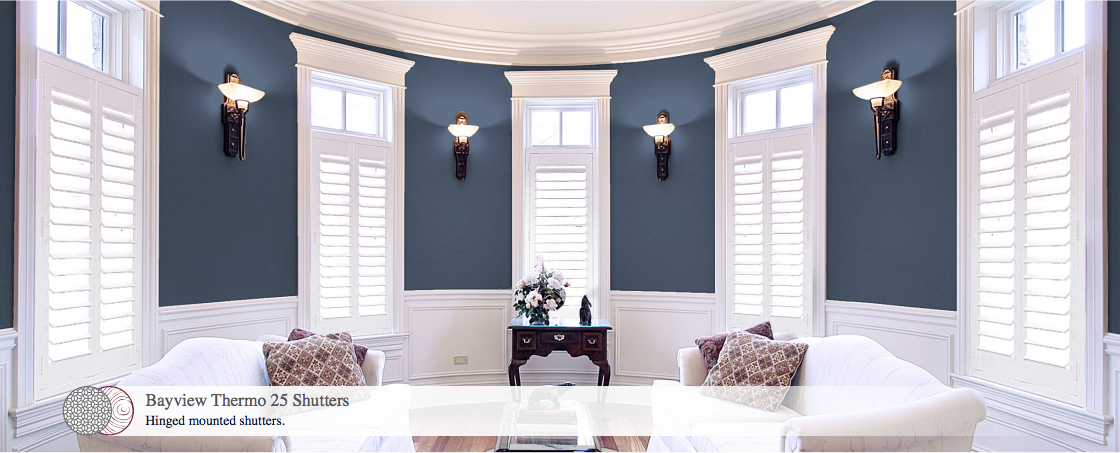

BAYVIEW PLANTATION SHUTTERS
About Bayview Thermo range
- Polyresin blades with aluminium core with polyresin frames.

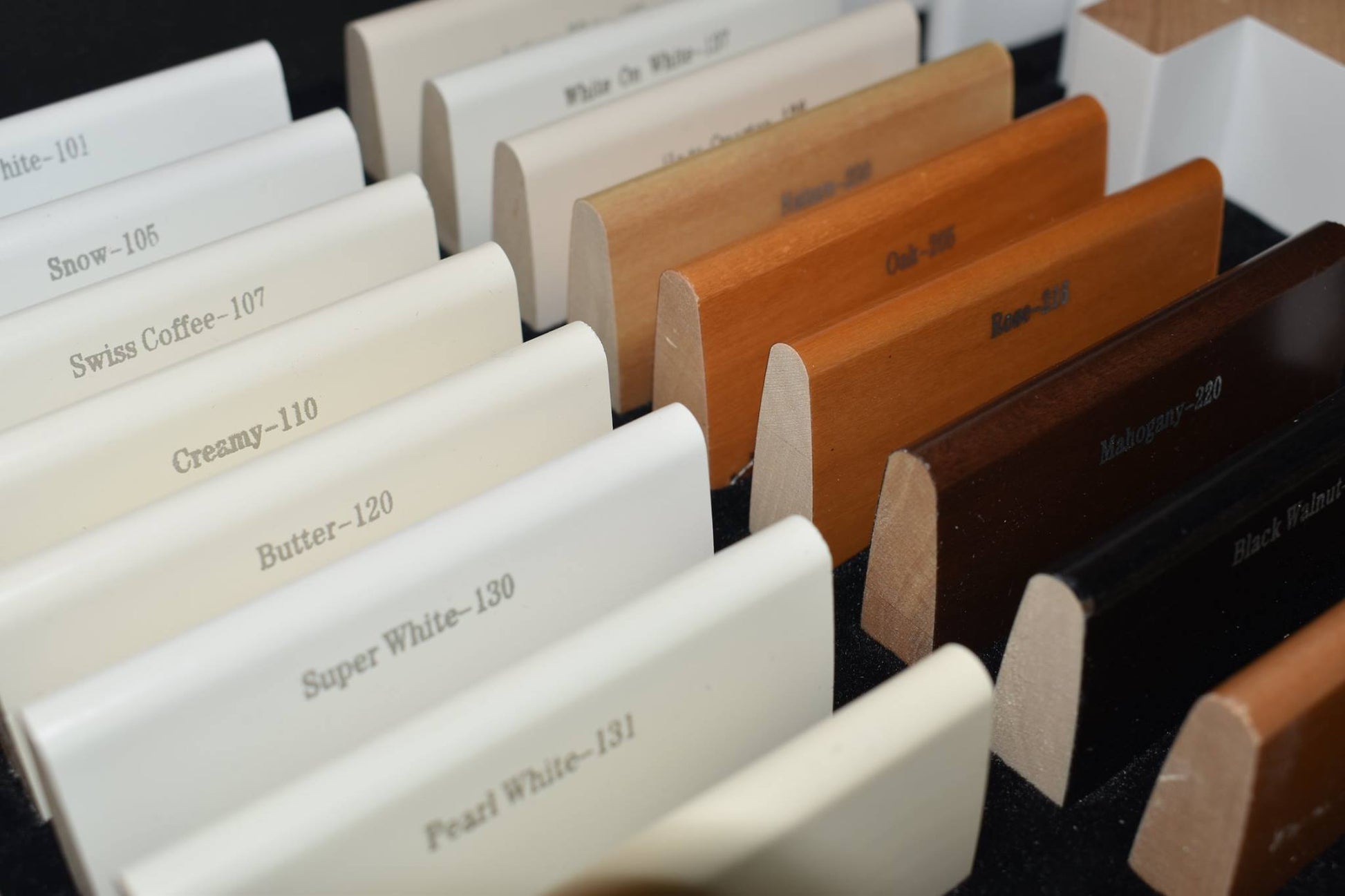

- Valspar- 2 pack Polyurethane paint in 15 colours - SGS tested VOC free. Painted after assembly ensures seamless elegant finish.
- Custom shapes
- Recyclable material and fire retardant.
- Outstanding insulation properties for temperature and noise
- 25 year shutter warranty & 10 year paint warranty
Complete control of light and mood
Comprehensive customisation
No fuss and low maintenance
Insulated and economical
Family friendly and reinforced
Specifications
Specifications
Shutter Dimension Requirements
Blade Sizes: 63mm, 89mm & 114mm Reinforced Elliptical PV
Minimum Panel Width: 200mm
Minimum Panel Height: 260mm
Maximum Panel Width: 900mm
Maximum Panel Height: 2400mm
Basswood & Paulownia range
Max Panel Width: 950mm
Max Panel Height: 3000mm
Maximum distance between top, bottom & midrails is 1500mm or panel area exceeding 1.3m². A mid rail is
required for drops that exceed this size.
Drops over 2400mm require 2 midrails.
Panel Sag Warranty is Void on all panels exceeding 700mm in width.
Care & Maintenance
Care & Maintenance
GENERAL OPERATION
• When rotating blades tilt two blades at
the same time from the centre of the panel.
• To open hinged panels, tilt open blades and pull the fixed stile. Never open or close the panels by pulling the blades.
• To avoid damage to the frame, larger panels should be lifted into frame by the stile or under the mid rail.
• Do not put hands through blades to access window.
• Blades must be closed before panels of bi-fold shutters are folded back.
• If blades are stiff or loose, adjust the tension screw located on the side of the panels until desired tension is reached.
MAINTENANCE
Surface dust should be removed with a feather duster, soft cloth or vacuum with a soft brush attachment.
A damp cloth with mild soap and water can be used for a deeper clean. Excessive use of water should be avoided.
Never use harsh abrasive products or solvents / industrial-based cleaners.
Use silicone spray if needed on tracks only. Do not spray silicon on shutters.
For further information please refer to your product guide or store for the best advice on how to care for your window coverings.
Warranty
Warranty
Installation warranty: 1 year when installed by Eastern Flooring Centre
Product Warranty
The product warranty is only valid for the original purchaser or first end user and is at the sole discretion of the manufacturer.
Paint Warranty:
- Thermo Select, Basswood or Paulownia painted range: 5 years
- Basswood or Paulownia stained range: 3 years
- Thermo 25: 10 years
Structural Warranty:
- Thermo Select and Thermo 25 range: 25 years
- Basswood & Paulownia range: 5 years
Hardware and components such as magnets, hinges, magnets catches, sliding/bi-fold wheels – Have a 2 year warranty.
Delivery & Pick Up Options
Delivery & Pick Up Options
Where Eastern Flooring Centre is to install window furnishings, delivery is usually included and will be stated in our quote.
Pick up is available from our Blackburn showroom for supply only orders.
Delivery is to be quoted on request.
Share this product
KEY BENEFITS
Common Questions About Plantation Shutters
Can Plantation Shutters Be Installed In Wet Areas?
Can Plantation Shutters Be Installed In Wet Areas?
It depends on the material of which the shutters are made.

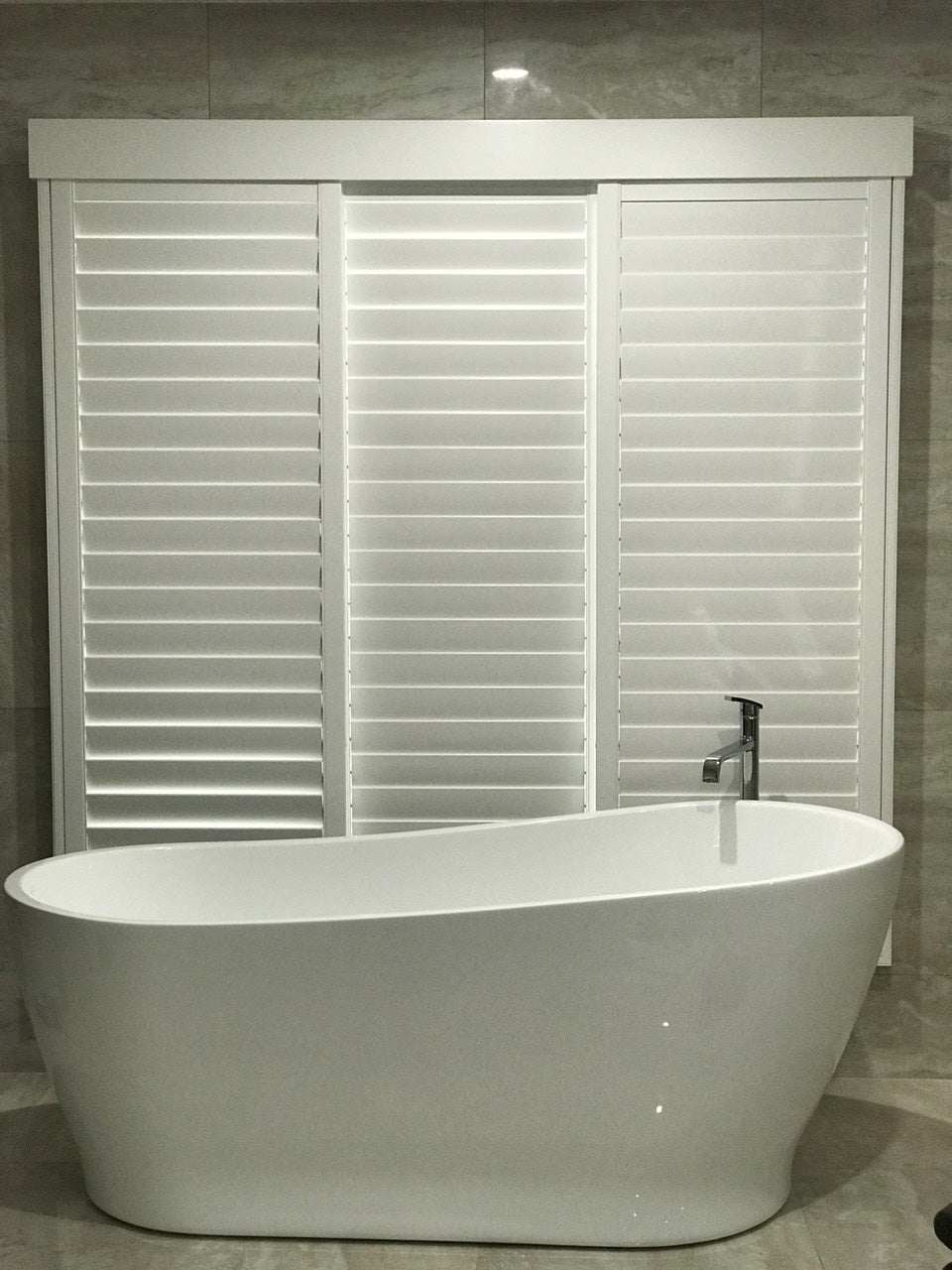

PVC shutters are highly resistant to water, moisture, and humidity, making them ideal for bathrooms, laundries and kitchens.
Timber shutters are not recommended for wet areas. Timber is a natural material that can absorb moisture, leading to warping, swelling, and potential damage over time.
Why Does Quality Matter?
Why Does Quality Matter?
Some cheaper PVC shutters may fade over time from sunlight exposure, so it's important to choose a reputable brand with UV protection.
Cheaper materials may result in shutters wearing quicker such as paint chipping or fittings breaking.
Some cheaper PVC shutters may use toxic materials like formaldehyde, which can pose health risks when exposed to heat or sunlight.
What If My Windows Aren't Even/Square?
What If My Windows Aren't Even/Square?
If your home is older, it is common to have movement in window alignment.
Our plantation shutters are custom made so we can take into account differences in width or height of each window side. Our Thermo PVC ranges can even accomodate shaped windows such as arches or circles.
How Long Does It Take To Get My Shutters?
How Long Does It Take To Get My Shutters?
Depending on the amount of shutters, our overseas made shutters generally take between 6-9 weeks to make and ship to our showroom.
If installation is required, then this can usually be done within 9-12 weeks from ordering.
Need a quicker turnaround time? Our Australian made shutters can be made in 2-4 weeks.

ORDER NOW, INSTALL LATER
Not quite ready for installation? Pay a deposit and we will store your blinds for you for up to 6 months.

FAMILY OWNED BUSINESS
We are an family owned Australian business. This means no huge business franchise fees so lower prices for you, the customer!

FREE MEASURE & QUOTE
We can visit your home or business for an inspection. No obligation to accept the quote.

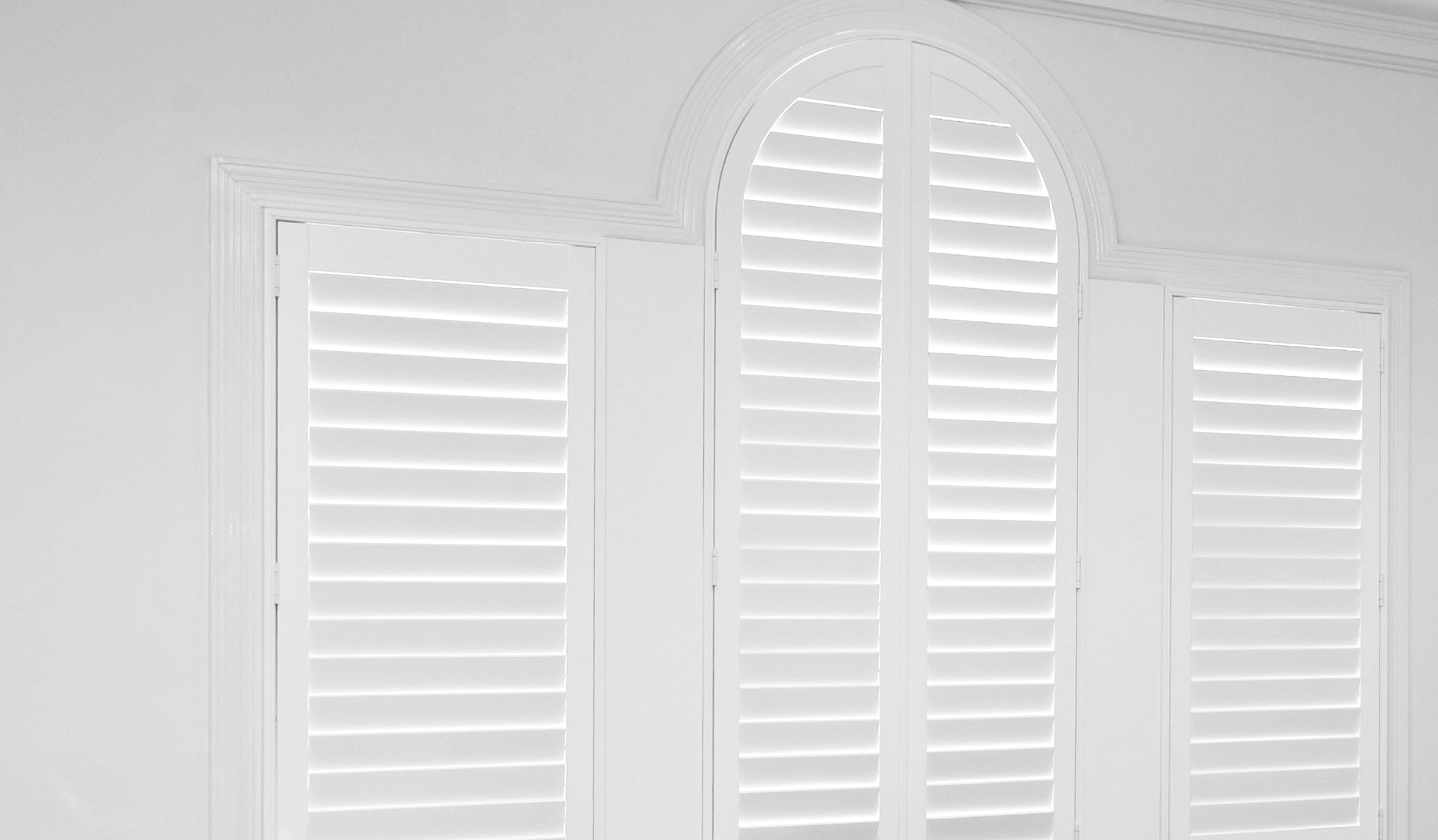

CUSTOM SHAPED SHUTTERS
Our THERMO Plantation shutter ranges can be custom made to fit shaped windows such as arched, triangle or racked windows.
